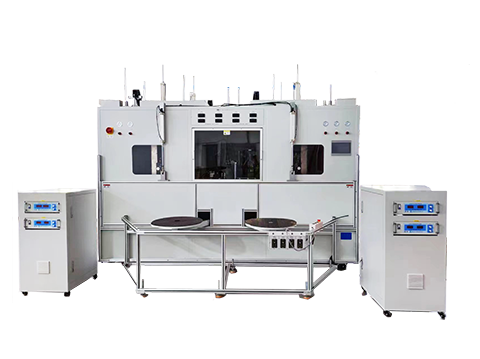

Overview of the Four-Gun Gold Spraying Machine:
The key task of the Four-Gun Gold Spraying Machine is to achieve the spraying process of metallized film capacitor chips. In this process, two working spray guns simultaneously utilize the arc spraying process to spray the capacitor chips. The process of arc spraying involves creating a short-circuit arc with charged metal wire, melting the metal wire using the high-temperature heat energy generated by the arc, and then atomizing the melted metal wire into tiny particles using high-speed compressed air. These particles are then sprayed onto the surface of the capacitor chip, forming a spray coating layer.
Features of the Four-Gun Gold Spraying Machine:
1. Enhanced Efficiency: The distinctive feature of the new equipment lies in the simultaneous operation of two spray guns, capable of synchronously spraying two 650mm diameter trays. Compared to the previous single operation mode, the efficiency has approximately doubled, effectively saving time and labor costs.
2. Cost-Saving Strategy: The equipment is equipped with two independent spraying chambers and corresponding dust removal devices, enabling the simultaneous spraying of two different metal layers. The first layer can use lower-cost pure zinc material, while the third layer can use higher-cost alloy materials, achieving an optimized balance between cost and performance.
3. Emphasis on Environmental Protection: The newly designed overall monocoque structure is more compact, effectively reducing the possibility of dust pollution. Simultaneously, by isolating the noise generated by the handheld spray gun, the overall noise level has been successfully reduced, meeting higher environmental standards.
4. Exquisite Appearance: In pursuit of better aesthetic results, the new design adopts an integrated solution, abandoning the previous split design. This makes the equipment appearance more simple and generous, demonstrating a more modern design style.
5. User-Friendly Operation: Through the combination of control panels and touch screens, the operating interface is more user-friendly and intuitive. This design makes the operation process simpler, allowing users to more easily grasp and manage the operation process.
6. Perfect Collaboration Partner: As a perfect complement, this equipment complements Guangsi’s spray guns, forming an efficient and coordinated system tower, providing the optimal choice for the gold spraying process.
