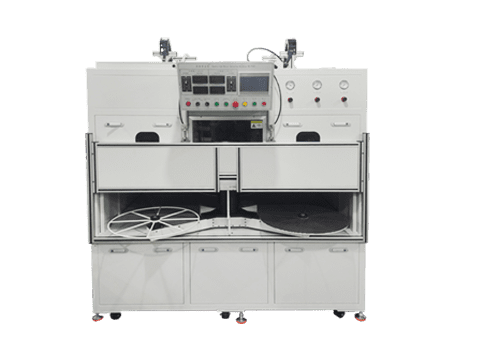

PJD3 Double guns spraying machine Summary:
The machine employs a dual-gun operation to achieve sub-prime spraying for capacitors. The process involves arc spraying, where two charged wires create a short circuit arc, generating heat that melts the metal wire. The molten metal is then atomized by high-speed air, forming a micro-particle coating layer on the surface.
PJD3 Double guns spraying machine Features:
1. Enhanced Efficiency: Simultaneous spraying from two trays (4650mm) ensures high efficiency. It approximately doubles the efficiency of PJC1, leading to time and operational cost savings.
2. Cost Efficiency: The machine features two separate gold spray chambers and suction devices. This enables simultaneous spraying of different metal layers, utilizing a high-cost alloy for the first layer with excellent electrical properties and a low-cost alloy for the second layer.
3. Environmentally Friendly: The machine boasts a more integral seal cover design, reducing dust pollution.
4. Reduced Noise: Effective separation of noise from the gun contributes to a quieter operation.
5. Aesthetic Appeal: The original split design has been replaced with an integrated and visually pleasing design. The touch-screen control panel enhances user-friendliness and simplicity.
6. Comprehensive System: Equipped with a well-designed gun and system, this machine is an optimal choice for the spraying process.
PJD3 Double guns spraying machine Specifications
name | value |
---|---|
Chassis Size | 21021000 (L) X1400 (W) X 2000 (H) mm |
The use of air pressure: | ≥0.6Mpa |
Gun Compressed air consumption | 3m3/min. |
Input Power | 380V 15KVA 50HZ |
The suction power | ≥7.5KVA (user-supplied) |
Spray wire diameter: | Φ0.16mm |
The sub-prime plate size | Φ50-650mm 0650mm. Disc actual spraying range Φ50-650mm Adjustable, saving material, high production efficiency. |
The spray material types | zinc, aluminum, zinc, tin alloy, pewter and other. |
Spray volume: spray | zinc 12 kg / hr (when operating current |
Spray back and forth scan times | 1-99 times available. |
gun round trips | trips: 0-8 times / min (adjustable). |
Turntable speed | 30 r / min. |
Rated output current | 200A (35V). |
Rated load voltage | 18-25V. |
Insulation class | E class |
Weight | 1200KG |
